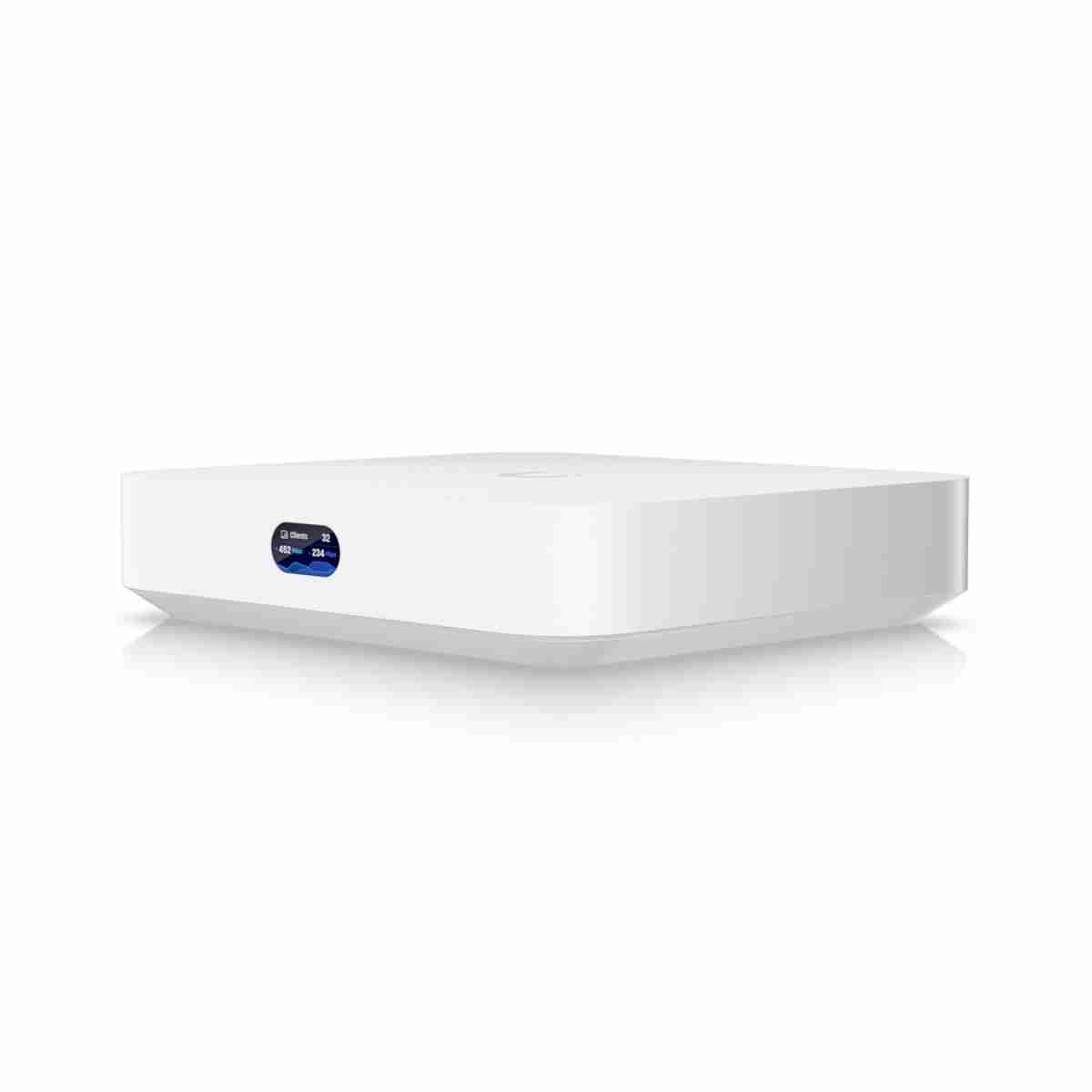

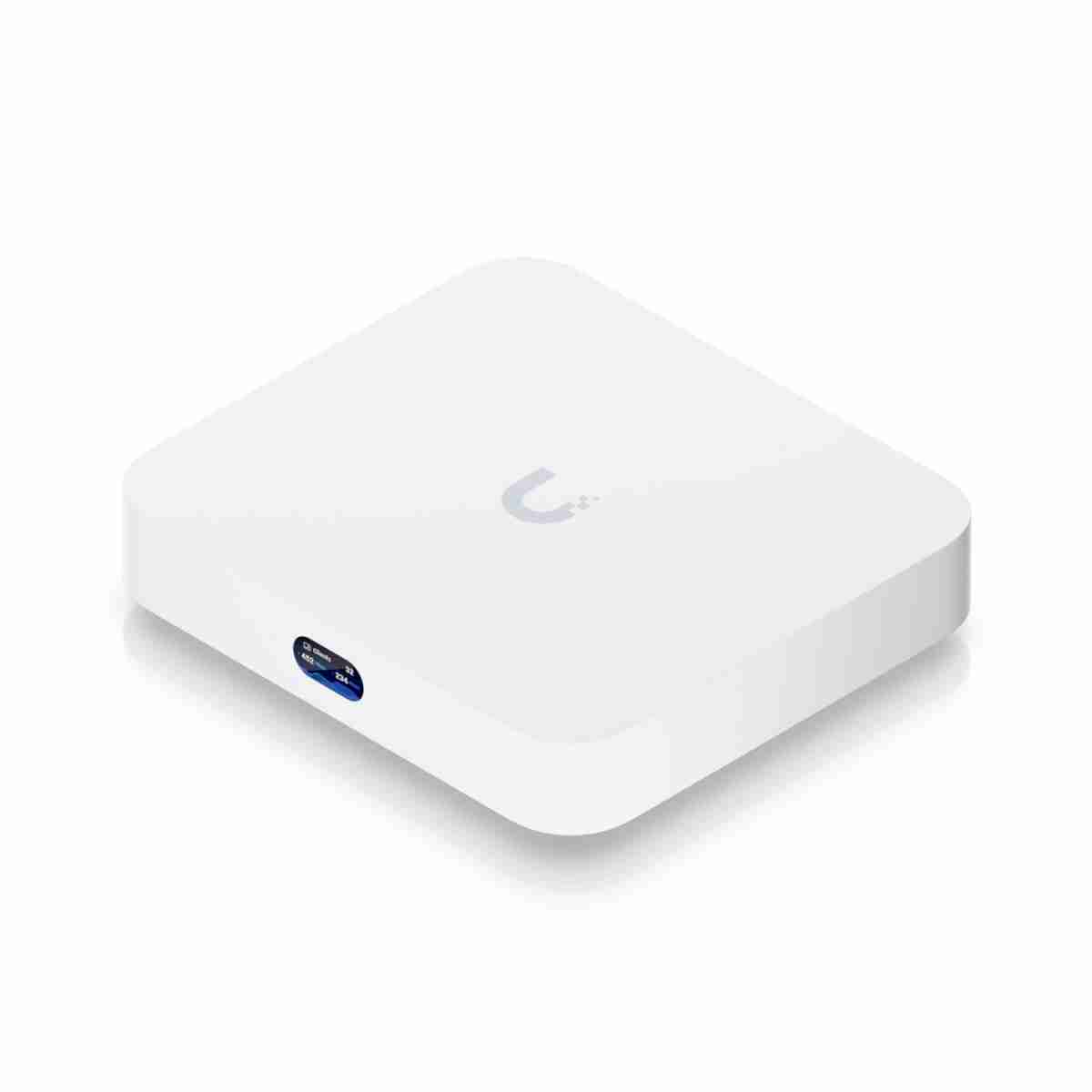

Ubiquiti UCG-Max Cloud Gateway Max

Ubiquiti UCG-Max Cloud Gateway Max

The Ubiquiti UCG-Max Cloud Gateway Max is a compact UniFi gateway designed for businesses, growing offices, and advanced home networks that need reliable performance, stronger security, and simple centralized management. Moreover, it supports the UniFi Network, Protect, Access, Talk, and Connect applications in one device. Therefore, it is a practical choice for users who want to manage multiple services from a single platform.

Product Overview

The Cloud Gateway Max is built for users who need more than a standard router. In addition, it supports over 30 managed UniFi devices, up to 50 managed access hubs, and more than 300 connected users. As a result, it fits well in offices, retail shops, schools, and other professional environments.

This UniFi gateway also provides up to four WAN ports, with one 2.5 GbE RJ45 WAN port enabled by default and five 2.5 GbE RJ45 ports in total. Moreover, its compact desktop design saves space while still delivering strong throughput, flexible connectivity, and advanced network control.

Key Features

• Supports the UniFi Application Suite for Network, Protect, Access, Talk, and Connect

• Manages 30+ UniFi devices for scalable deployments

• Handles 300+ simultaneous users for busy environments

• Includes stateful firewall and application-aware Layer 7 firewall

• Supports DPI and traffic identification for better network visibility

• Offers content filtering and intrusion prevention for stronger protection

• Delivers up to 2.3 Gbps IDS/IPS throughput for secure high-speed traffic

• Provides multi-WAN load balancing for improved stability and uptime

• Supports Site Magic, IPsec, OpenVPN, WireGuard, L2TP, and Teleport VPN

• Accepts selectable NVMe SSD storage up to 2 TB

• Features a compact desktop form factor for convenient placement

• Includes a 0.96-inch status display for quick device information

Technical Specifications

• Brand: Ubiquiti

• Model: UCG-Max

• Product Name: Ubiquiti UCG-Max Cloud Gateway Max

• Dimensions: 141.8 x 127.6 x 30 mm

• Form Factor: Compact desktop

• Ports: 5 x 2.5 GbE RJ45

• Max WAN Port Count: 4

• Default WAN Port: 1 x 2.5 GbE RJ45

• IDS/IPS Throughput: 2.3 Gbps

• Processor: Quad-core ARM Cortex-A53 at 1.5 GHz

• System Memory: 3 GB

• Power Method: USB Type-C, 5V DC/5A

• Power Supply: USB Type-C adapter included

• Supported Voltage Range: 100–240V AC

• Max Power Consumption: 16.1W

• NVR Storage: Selectable NVMe SSD up to 2 TB

• Display: 0.96-inch status display

• Management: Ethernet and Bluetooth

• Operating Temperature: -10 to 40°C

• Operating Humidity: 5 to 95% noncondensing

• Enclosure Material: Polycarbonate

• Compliance: NDAA compliant

• Certifications: CE, FCC, IC, Anatel, SRRC
