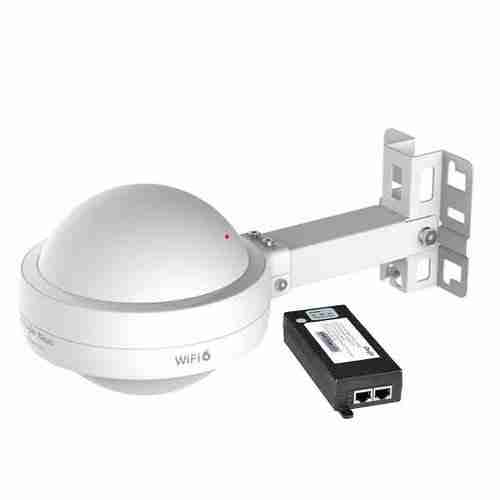

Ruijie Reyee RG-RAP6262 AX3000 Outdoor Wi-Fi 6 Access Point

The Ruijie Reyee RG-RAP6262 AX3000 Outdoor Wireless Access Point is designed to deliver fast, reliable, and wide-area Wi-Fi connectivity in outdoor and challenging environments. Featuring Wi-Fi 6 technology, high-speed wireless performance, an integrated optical interface, and a rugged IP68-rated enclosure, it is an excellent solution for businesses and organizations that need dependable outdoor wireless coverage.

High-Speed AX3000 Wi-Fi 6 Performance

Enjoy combined theoretical wireless speeds of up to 2974 Mbps across the 2.4 GHz and 5 GHz frequency bands. The access point supports up to 573 Mbps on 2.4 GHz and 2401 Mbps on 5 GHz, providing capacity for video streaming, mobile devices, cloud applications, and business network traffic.

Wi-Fi 6 technologies, including OFDMA, 1024-QAM, and support for 160 MHz channel bandwidth, help improve wireless efficiency and throughput when used with compatible devices and suitable network configurations.

Durable IP68-Rated Outdoor Design

Built for demanding outdoor installations, the RG-RAP6262 features an IP68-rated enclosure designed to protect against dust and water ingress under specified conditions. Its rugged construction and wide operating temperature range make it suitable for outdoor deployments exposed to changing weather conditions.

With an operating temperature range of -30°C to +65°C and 4 kV surge protection, it is designed for use in a variety of commercial and industrial outdoor environments. Correct installation, grounding, and surge protection practices remain important.

Wide-Area Omnidirectional Wireless Coverage

The access point incorporates five built-in omnidirectional antennas, with two antennas for 2.4 GHz and three for 5 GHz. Its design supports broad outdoor wireless coverage for users moving around campuses, commercial compounds, parking facilities, and recreational spaces.

Actual coverage depends on the site layout, obstacles, interference, client devices, mounting position, and local radio regulations. Multiple access points may be required for consistent coverage across larger properties.

Optical SFP Connectivity for Long-Distance Deployment

A key feature of the RG-RAP6262 is its Gigabit Ethernet interface and 1 Gigabit SFP optical port. The fiber interface supports long-distance network connectivity, with the manufacturer specifying transmission distances of up to 20 km using compatible single-mode fiber equipment.

This makes the access point suitable for deployments where traditional copper Ethernet cabling is impractical over longer distances. Compatible SFP modules and fiber infrastructure must be selected for the installation.

Reyee Mesh and Cloud Management

Reyee Mesh technology makes it easier to extend outdoor wireless coverage using compatible access points. Depending on the network design, mesh connectivity can reduce the need to run individual wired connections to every access point.

Ruijie Cloud management provides tools for remote monitoring, wireless configuration, maintenance, and network administration. Supported cloud features can help simplify management across multiple sites and access points.

Flexible Installation and Power Options

The RG-RAP6262 supports wall or pole mounting and offers flexible deployment options for outdoor networking projects. It can be powered using a compatible PoE/PoE+ connection or a 12V DC, 2A power adapter.

The device has a maximum power consumption of 24 W. Check the required PoE capability, optical module compatibility, and power accessories before installation.

Recommended Applications

• Outdoor Wi-Fi for hotels, resorts, and hospitality facilities
• School, university, and campus wireless networks
• Warehouses and industrial compounds
• Parking lots and commercial properties
• Parks, playgrounds, plazas, and recreational facilities
• Outdoor wireless networks for offices and business campuses
• Fiber-connected wireless deployments across large properties
• Outdoor Wi-Fi expansion using compatible Reyee Mesh devices

Why Choose the Ruijie Reyee RG-RAP6262?

The RG-RAP6262 combines Wi-Fi 6 performance, broad omnidirectional coverage, rugged IP68 protection, optical fiber connectivity, and cloud-based network management in one outdoor access point. It is a practical solution for organizations seeking scalable outdoor Wi-Fi across large or challenging sites.

Choose the Ruijie Reyee RG-RAP6262 AX3000 for high-speed outdoor wireless networking with flexible connectivity and centralized management capabilities.
