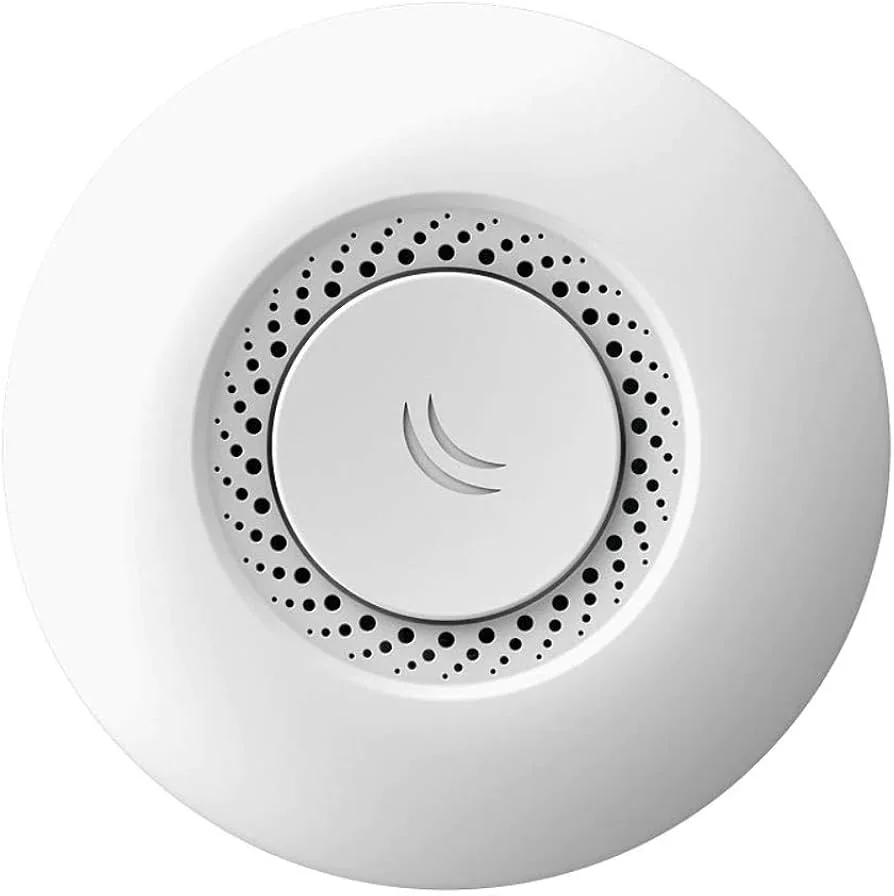

MikroTik CAP Lite RBcAPL-2nD Access point

MikroTik CAP Lite RBcAPL-2nD Access point

The MikroTik CAP Lite RBcAPL-2nD is a compact and efficient indoor wireless access point designed to enhance wireless coverage in homes, small offices, or commercial spaces. Operating on the 2.4 GHz band, this access point supports the 802.11b/g/n wireless standards with a maximum throughput of up to 300 Mbps, ensuring reliable and stable Wi-Fi connectivity for various devices.

Powered by an Atheros QCA9531 650 MHz processor, the CAP Lite features 64 MB of RAM and 16 MB of flash storage, providing smooth performance for basic networking tasks. With a single Fast Ethernet port for wired connections, it seamlessly integrates into existing networks, while its wireless capabilities ensure strong Wi-Fi coverage across the environment.

The CAP Lite is designed for flexible installation, with a small and unobtrusive form factor that can be easily mounted on walls or ceilings. It supports passive PoE (Power over Ethernet), simplifying the installation process by allowing both power and data to be delivered through a single Ethernet cable.

Operating with MikroTik’s RouterOS, the CAP Lite offers advanced network management features, including routing, security, and monitoring tools, making it a versatile choice for those needing more control over their network. The access point also includes LED indicators for monitoring power, Ethernet, and wireless status, making it easy to manage and troubleshoot.

Key Features

• Dual-chain 2.4 GHz wireless access point
• Wi-Fi 4 / IEEE 802.11b/g/n
• Up to 300 Mbps wireless data rate
• MikroTik RouterOS operating system
• CAPsMAN centralized management support
• Standalone access point operation
• 1 × 10/100 Ethernet port
• 802.3af/at and passive PoE support
• Compact wall or ceiling installation
• 360° antenna beam width
• Low power consumption of up to 4 W
• Includes PoE injector and power adapter

Technical Specifications

• Product Code: RBcAPL-2nD
• Product Name: MikroTik cAP lite
• CPU: QCA9533
• CPU Frequency: 650 MHz
• CPU Cores: 1
• RAM: 64 MB
• Storage: 16 MB Flash
• RouterOS License: Level 4
• Operating System: RouterOS
• Wireless Standard: 802.11b/g/n
• Wireless Frequency: 2.4 GHz
• Wireless Chains: 2
• Maximum Wireless Rate: 300 Mbps
• Antenna Gain: 1.5 dBi
• Antenna Beamwidth: 360°
• Ethernet: 1 × 10/100 Mbps
• PoE: 802.3af/at or passive PoE
• Power Consumption: Up to 4 W
• Operating Temperature: -40°C to +70°C
• Wall Dimensions: 88 × 52 × 20 mm
• Ceiling Dimensions: 88 mm diameter × 20 mm
• Installation: Wall or ceiling mount

Package Contents

• MikroTik cAP lite RBcAPL-2nD
• 24V 0.2A power adapter
• PoE injector
• Mounting/fastening set
• Wall and ceiling enclosure options

Ideal Applications

The MikroTik cAP lite RBcAPL-2nD Access Point is suitable for:

• Offices and small businesses
• Hotels and hospitality facilities
• Schools and institutions
• Shops and retail premises
• Homes and apartments
• Airports and public facilities
• Multi-AP wireless networks
• CAPsMAN-managed Wi-Fi deployments
